2000 Series Apparatus Bushings
5 kV, 60 kV BIL (Air/Air)
5 kV, 75 kV BIL (Air/Oil)
800 AMP to 3500 AMP


Use:

2000 Series Apparatus Bushings are designed for use in both liquid filled transformer and switchgear applications.
Current carrying capacity is affected by mounting and termination methods.

Construction:
2000 Series Apparatus Bushings are constructed of C110 electrolytic grade copper with silver brazed connections for maximum conductivity.
Insulation is Cycloaliphatic cast epoxy rated for enclosed or outdoor applications.

Custom Options:
2000 Series Apparatus Bushings are easily customized for any application.
Spade and stud configurations can be altered to suit any termination, and copper conductor sizes are available for 800 AMP to 3500 AMP applications.
Body shank lengths can also be customized to customer requirements.

Electrical / Mechanical Data:

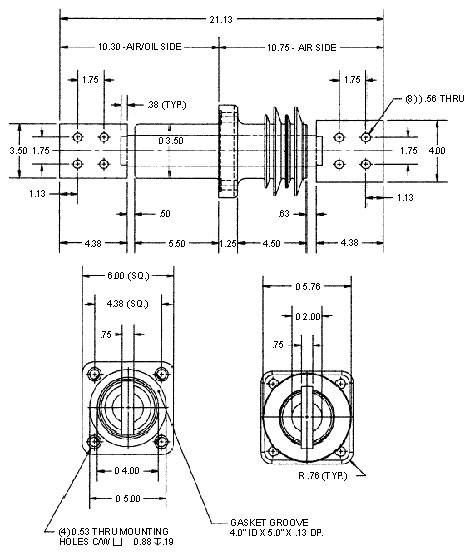

DWG. NO. 20-000-000

DWG. NO. 20-000-000

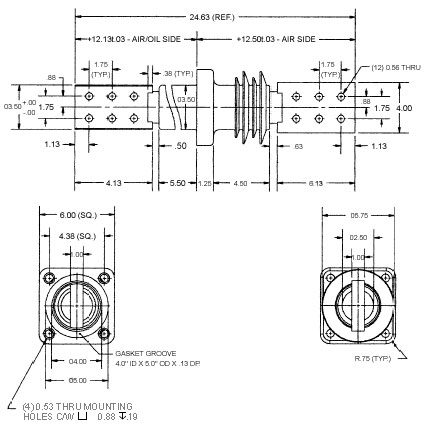

DWG. NO. 20-000-001

DWG. NO. 20-000-001

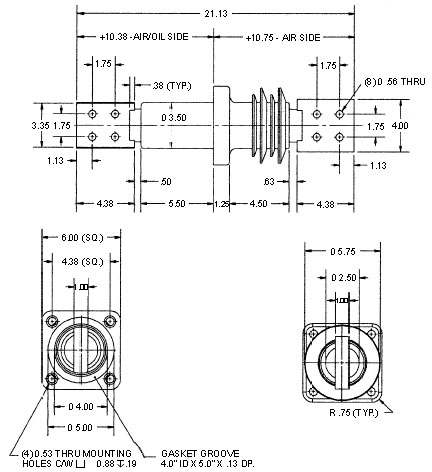

DWG. NO. 20-000-002

DWG. NO. 20-000-002

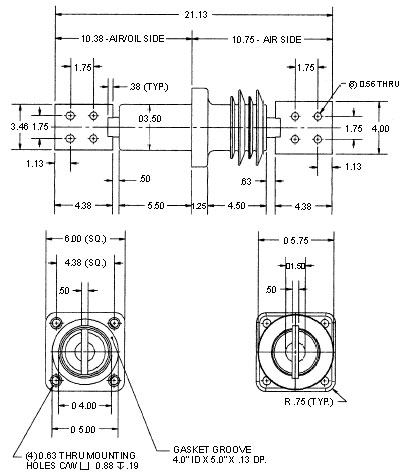

DWG. NO. 20-000-005

DWG. NO. 20-000-005

Notes:
All contact surfaces to be clean & free from flash.
Recommended opening: Ø4.00 (min.).
Material:
E04 - Cycloalphatic epoxy (U.V. exposed).
C110 grade Copper, Tin plated.
Specifications:
Rated Voltage 5 kV
Power Frequency Withstand 19 kV
Basic Impulse Level 60 kV Air/Air, 75 kV Air/Oil
Nominal Current Rating 2000 AMPS (Air/Air)
  3500 AMPS (Air/Oil)
Creep Distance 10°
Temperature Classification -50°C to 105°C
