2000 - MV Series Apparatus Bushings
15 kV, 110 kV BIL to 46 kV, 250 kV BIL
Current Rating: 600 AMP to 3000 AMP
Conductivity: 99.99%

Use:
2000 Series Apparatus Bushings are designed for use in both liquid filled transformer and switchgear applications.
Current carrying capacity is affected by mounting and termination methods.

Construction:
2000 Series Apparatus Bushings are constructed of C110 electrolytic grade copper with silver brazed connections for maximum conductivity.
Insulation is Cycloaliphatic cast epoxy rated for enclosed or outdoor applications.
2000 Series Apparatus Bushings are capacitance graded bushings with integrally cast in ground shields for the purpose of controlling the electric field distribution.

Custom Options:
2000 Series Apparatus Bushings are easily customized for any application. Spade and stud configurations can be altered to suit any termination.
Conductor sizes are available for AMP to 3000 AMP applications.
Body shank lengths can also be customized to customer requirements.

Electrical / Mechanical Data:

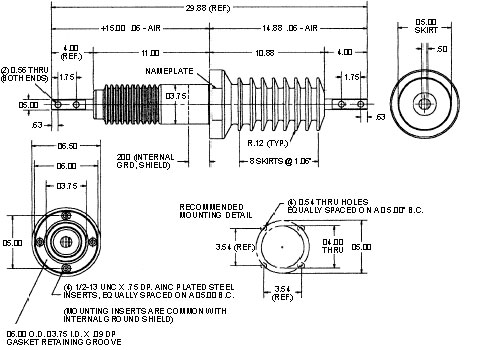

20-250-200

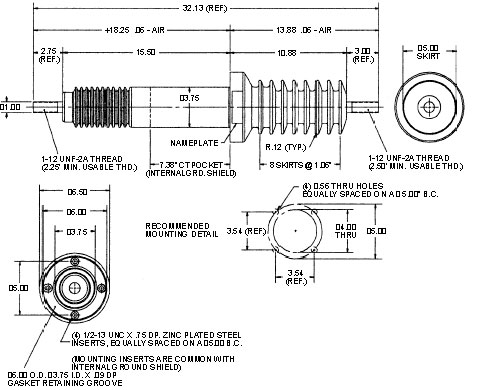

20-425-000

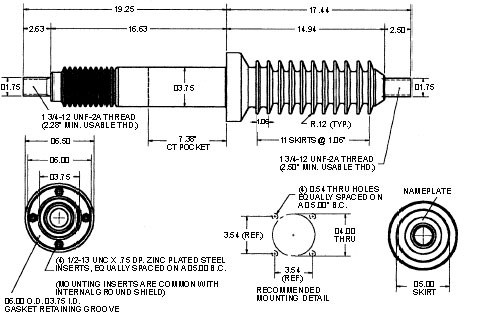

20-450-100

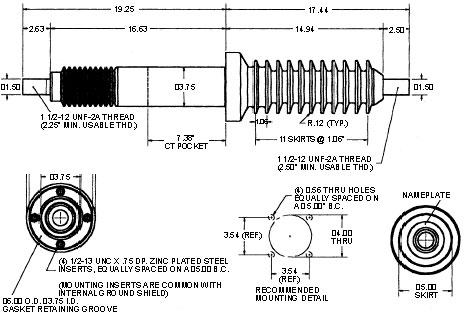

20-450-000

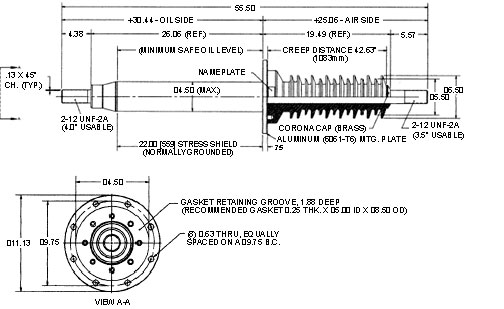

20-500-600

Notes:
All contact surfaces to be clean & free from flash
Cantilever load specification, based on (static) load applified horizontally at center point of top stud.
Material:
Cycloaliphatic epoxy, gray (U.V. exposed).
HD ETP C11000 copper, tin plated.
Specifications:
Manufactured in Accordance with	CAN/CSA-C88.1.96 / ANSI C57.19.01-1991
Rated Voltage	35 kV
Basic Implusive Level	200 kV
Nominal Current Rating	2000 AMPS
Creep Distance	42.631" (1083mm)
Temperature Classification	-50°C to 105°C
Cantilever Load (Ultimate)	400 lbf (1760N)
Approximate Shipping Weight	100 lbs (45.5 kg)
