Engineered Power Components - Terminal Blocks
900 Series Multi Stud Transformer Bushings - 600 V,10 kV BIL (Air/Oil)
Use
900 Series Multi Stud Transformer Bushings are designed for use as terminal blocks in liquid filled transformer applications. These units are designed for indoor or outdoor enclosed applications where units will encounter no UV exposure.
Construction
900 Series Bushings are of rugged molded epoxy design with internally cast-in brass studs. Studs are treated prior to casting to guarantee a positive oil seal. The studs are provided with a standard thread option on both the air and oil side.
Custom Options
900 Series Bushings can be supplied with numerous custom termination methods designed to customer requirements.
Electrical / Mechanical Data

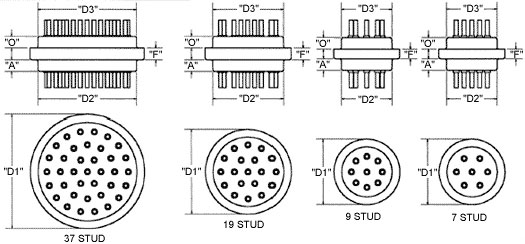

PRODUCT SELECTION GUIDE
| STYLE | DIMENSIONS | PART NUMBERS | |||||
|---|---|---|---|---|---|---|---|
| "D1" | "D2" | "D3" | "A" | "O" | "F" | ||
| 7-STUD | 4.25 | 3.25 | 3.25 | 0.75 | 0.75 | 0.63 | 09-000-001 0A E01 |
| 9-STUD | 4.25 | 3.25 | 3.25 | 0.75 | 0.75 | 0.63 | 09-000-002 0A E01 |
| 19-STUD | 5.50 | 4.50 | 4.50 | 0.75 | 0.75 | 0.75 | 09-000-003 0A E01 |
| 37-STUD | 7.38 | 6.38 | 6.38 | 0.75 | 0.75 | 0.75 | 09-000-004 0A E01 |
Notes:
All unspecified RADII to be R0.125
Consult individual drawings for complete dimensions.
Material:
Bisphenol-A Epoxy
Brass
Specifications:
Basic Impulse Level ................................. 10 kV
Temperature Classification .................... -50°C to 155°C
