Use:
1002 Series Transformer Mounted LV Bushings are designed for use as secondary
bushings in liquid filled transformer applications.
Units are available for both outdoor (UV exposed) and enclosed applications.
Current ratings are based on 65°C rise above ambient and are typical for sidewall mounting with shanks below oil level.
Current carrying capacity is affected by mounting and termination methods.
Construction:
1002 Series Secondary Bushings are constructed of C110 electrolytic grade copper with silver brazed connections for maximum conductivity.
Insulation is Bis-A cast epoxy for enclosed applications.
Outdoor units are supplied with Cycloaliphatic epoxy material.
1002 Series bushings are designed for external clamping applications.
Custom Options:
1002 Series Secondary Bushings are easily customized for non-standard applications.
Spade and stud options can be adapted to suit customer requirements for easy installation in existing equipment.

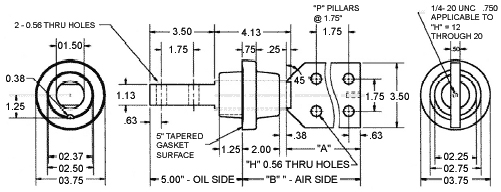

Electrical / Mechanical Data:
PRODUCT SELECTION GUIDE
| TERMINAL STYLE (AIR SIDE) | PART NUMBERS | PLATING TYPES | |||||
|---|---|---|---|---|---|---|---|
| "A" | "B" | "H" | "P" | TIN | SILVER | NONE | |
| 4.00 | 6.38 | 4 | 1 | 10-021-018 0A E01 | T | S | N |
| 5.75 | 8.13 | 6 | 2 | 10-021-019 0A E01 | T | S | N |
| 7.50 | 9.88 | 8 | 3 | 10-021-020 0A E01 | T | S | N |
| 9.25 | 11.63 | 10 | 4 | 10-021-021 0A E01 | T | S | N |
| 11.00 | 13.38 | 12 | 5 | 10-021-022 0A E01 | T | S | N |
| 12.75 | 15.13 | 14 | 6 | 10-021-023 0A E01 | T | S | N |
| 14.50 | 16.88 | 16 | 7 | 10-021-024 0A E01 | T | S | N |
| 16.25 | 18.63 | 18 | 8 | 10-021-025 0A E01 | T | S | N |
| 18.00 | 20.38 | 20 | 9 | 10-021-026 0A E01 | T | S | N |
| Notes: | |
|---|---|
| All unspecified RADII to be RO.125 | |
| All contact surfaces to be clean & free from flash | |
| Material: | |
| Bisphenol-A-Epoxy | |
| C110 Grade Copper | |
| Specifications: | |
| Basic Implusive Level: | 30 kV |
| Maximum Current Rating: | 2200 AMPS |
