1007 Series Transformer Mounted
Secondary LV Bushings
2.5 kV, 45 kV BIL (Air/Oil)
1.2 kV, 30 kV BIL (Air/Air)
7500 AMP

1002 Series Transformer Mounted Secondary LV Bushings 1.2 kV, 30 kV BIL, 1100 Amp
Use
:
1007 Series Transformer Mounted LV Bushings are designed for use as secondary bushings in liquid filled transformer applications.
Units are available for both outdoor (UV exposed) and enclosed applications.
Current ratings are based on 65°C rise above ambient and are typical for sidewall mounting with shanks below oil level.
Current carrying capacity is affected by mounting and termination methods.

Construction:
1007 Series Secondary Bushings are constructed of C110 electrolytic grade copper with silver brazed connections for maximum conductivity.
Insulation is Bis-A cast epoxy for enclosed applications. Outdoor units are supplied with Cycloaliphatic epoxy material.
1007 Series bushings are designed for external clamping applications.

Custom Options:
1007 Series Secondary Bushings are easily customized for non-standard applications.
Spade and stud options can be adapted to suit customer requirements for easy installation in existing equipment.

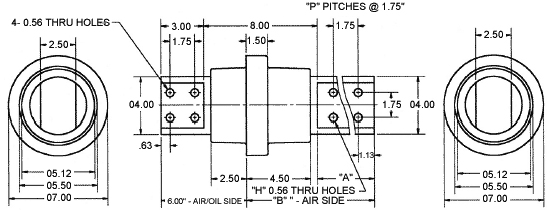

Electrical / Mechanical Data:

Electrical / Mechanical Data

PRODUCT SELECTION GUIDE

TERMINAL STYLE (AIR SIDE) PART NUMBERS PLATING TYPES
"A" "B" "H" "P" TIN SILVER NONE
4.00 9.00 4 1 10-070-000 0A E01 T S N
5.75 10.75 6 2 10-070-001 0A E01 T S N
7.50 12.50 8 3 10-070-002 0A E01 T S N
9.25 14.25 10 4 10-070-003 0A E01 T S N
11.00 16.00 12 5 10-070-004 0A E01 T S N
12.75 17.75 14 6 10-070-005 0A E01 T S N
14.50 19.50 16 7 10-070-006 0A E01 T S N
16.25 21.25 18 8 10-070-007 0A E01 T S N
18.00 23.00 20 9 10-070-008 0A E01 T S N

Notes:
All unspecified RADII to be RO.125
All contact surfaces to be clean & free from flash
Material:
Bisphenol-A-Epoxy
C110 Grade Copper
Specifications:
Basic Implusive Level: 30 kV AIR/AIR, 45 kV AIR/OIL
Maximum Current Rating: 7500 AMPS
